Offload Compute
Due to complaince reasons it quite common along customers to use AWS just for storage and configuration purpose and leverage their own data centers for workload processing. Part of this article lets see how we can address this usecase
Usecase walkthrough
Here is the high level view architecture of the workload that we are going in this chapter
Notes:
- Lets see create a typical file processing workload, where a input file lands in an S3 bucket
- Lambda function listening to the S3 bucket will invoke an ECS task to process this file
- This ECS task will download the file from S3 to local disk, process it, save the data to a database (in this case dynamodb) and write the output file back to AWS S3
- Only difference here is instead of running the ECS task in AWS cloud we will be running in vargant VM installed on your local laptop
Pre-requistes
- Setup the environment variables required to build ECS-anywhere cluster and run workloads using the newly created cluster.
Change the name of the CLUSTER_NAME and SERVICE_NAME if desired, for running multiple tests.
export AWS_DEFAULT_REGION=us-east-1
export ROLE_NAME=ecsMithrilRole
export CLUSTER_NAME=test-ecs-anywhere
export SERVICE_NAME=test-ecs-anywhere-svc
Note: Change the value of
AWS_DEFAULT_REGIONto match the default AWS region.
- ECS cluster is up and running
- Vagrant VM is connected to ECS control plane and has the required network connectivity to access AWS cloud
Summary
Here is the high level summary of all the steps involved to run this workload:
- Create a ECR repository for lambda function, run
sam buildandsam deploywhich will take care of creating the lambda function, S3 input bucket with event trigger and Dynamodb table - Attach the required IAM policies to
ecsanywhereTaskRolerole in order to provide access to the ECS task to access S3 bucket and ECS cluster - Create a ECR repository for the ECS task, build the file processor module (written in Go) and push the docker image to AWS ECR
- Register a new ECS task
Step by step instruction
-
Navigate to the root directory and run the following commands to provide execute permissions on the shell scripts
cd workload-management/s3-trigger-ecs-task chmod +x *.sh -
Run the following command to setup environment variables required for this workload.
source ./0-env.sh -
Run the following command to create a new ECR repository for AWS Lambda and ECS Task
./1-lambda-ecr-repo.sh -
Run the following command to trigger a sam build and deploy
./2-sam.shOutput:
CloudFormation events from changeset --------------------------------------------------------------------------------------------------------------------- ResourceStatus ResourceType LogicalResourceId ResourceStatusReason --------------------------------------------------------------------------------------------------------------------- CREATE_IN_PROGRESS AWS::DynamoDB::Table OrdersTable Resource creation Initiated CREATE_IN_PROGRESS AWS::IAM::Role LambdaECSTaskFunctionRole Resource creation Initiated CREATE_IN_PROGRESS AWS::DynamoDB::Table OrdersTable - CREATE_IN_PROGRESS AWS::IAM::Role LambdaECSTaskFunctionRole - CREATE_COMPLETE AWS::IAM::Role LambdaECSTaskFunctionRole - CREATE_IN_PROGRESS AWS::Lambda::Function LambdaECSTaskFunction - CREATE_IN_PROGRESS AWS::Lambda::Function LambdaECSTaskFunction Resource creation Initiated CREATE_COMPLETE AWS::DynamoDB::Table OrdersTable - CREATE_COMPLETE AWS::Lambda::Function LambdaECSTaskFunction - CREATE_IN_PROGRESS AWS::Lambda::Permission LambdaECSTaskFunctionFilePr - ocessorPermission CREATE_IN_PROGRESS AWS::Lambda::Permission LambdaECSTaskFunctionFilePr Resource creation Initiated ocessorPermission CREATE_COMPLETE AWS::Lambda::Permission LambdaECSTaskFunctionFilePr - ocessorPermission CREATE_IN_PROGRESS AWS::S3::Bucket SrcBucket - CREATE_IN_PROGRESS AWS::S3::Bucket SrcBucket Resource creation Initiated CREATE_COMPLETE AWS::S3::Bucket SrcBucket - CREATE_COMPLETE AWS::CloudFormation::Stack lambda-ecs-task-launcher - --------------------------------------------------------------------------------------------------------------------- CloudFormation outputs from deployed stack ---------------------------------------------------------------------------------------------------------------------- Outputs ---------------------------------------------------------------------------------------------------------------------- Key Bucket Description S3 Bucket Name Value aws-file-drop-775492342640 Key LambdaECSTaskFunction Description Lambda ECS Task Function ARN Value lambda-ecs-task-launcher-LambdaECSTaskFunction-9DDHeq8ZFQLm ---------------------------------------------------------------------------------------------------------------------- Successfully created/updated stack - lambda-ecs-task-launcher in us-east-1 -
Run the following command to attach the required IAM policies to the ECS task and execution role
./3-ecs-iam-roles.shNote: Permissions relates to
Dynamodb,S3andECRpolicies are attached to the ECS task role -
Run the following command to build the Go module and push the docker image to ECR repository
./4-ecs-ecr-push.shOutput
=> [internal] load build definition from Dockerfile 0.0s => => transferring dockerfile: 812B 0.0s => [internal] load .dockerignore 0.0s => => transferring context: 2B 0.0s => [internal] load metadata for docker.io/library/golang:alpine 0.0s => [builder 1/10] FROM docker.io/library/golang:alpine 0.0s => [internal] load build context 0.0s => => transferring context: 32.34kB 0.0s => CACHED [builder 2/10] RUN apk add --no-cache git 0.0s => CACHED [builder 3/10] WORKDIR /app/go-sample-app 0.0s => CACHED [builder 4/10] COPY go.mod . 0.0s => CACHED [builder 5/10] COPY go.sum . 0.0s => CACHED [builder 6/10] RUN export GOPROXY="direct" 0.0s => CACHED [builder 7/10] RUN go env -w GOPRIVATE=* 0.0s => CACHED [builder 8/10] RUN go mod download 0.0s => [builder 9/10] COPY . . 0.0s => [builder 10/10] RUN go build -o ./out/go-sample-app main.go 5.3s => CACHED [stage-1 2/5] RUN apk add --no-cache python3 py3-pip ca-certificates && pi 0.0s => CACHED [stage-1 3/5] COPY --from=builder /etc/passwd /etc/passwd 0.0s => CACHED [stage-1 4/5] COPY --from=builder /etc/group /etc/group 0.0s => CACHED [stage-1 5/5] COPY --from=builder /app/go-sample-app/out/go-sample-app /main 0.0s => exporting to image 0.0s => => exporting layers 0.0s => => writing image sha256:92ea38962483dd1f83946a8560cad301b590d68dd45cb7241608b73ae3367499 0.0s => => naming to docker.io/library/ecs-task-s3-process-repo 0.0s Use 'docker scan' to run Snyk tests against images to find vulnerabilities and learn how to fix them The push refers to repository [775492342640.dkr.ecr.us-east-1.amazonaws.com/ecs-task-s3-process-repo] 601d8c0995f1: Layer already exists 391889d77512: Layer already exists b878da30d815: Layer already exists cab0017af15d: Layer already exists a9d40f605488: Layer already exists dc27f0c2b863: Layer already exists a588deb4bef3: Layer already exists 224f6b2e3ad2: Layer already exists b2d5eeeaba3a: Layer already exists latest: digest: sha256:7f627009807327d285f4612b5882ef7d838448c0630fd2b76e43441bddda1217 size: 2202 3c22fbba908c:s3-trigger-ecs-task harrajag$ -
Register the ECS task definition which will get triggered when the file gets dropped into the S3 input bucket
./5-register-task.sh -
Run the following command to copy a sample input file
test.csvto the input directory. This will automatically trigger the lambda function, which would invoke the ECS task (executed outside AWS cloud) to process the file./6-test.sh -
Once the execution of the ECS task completes, we can see both dynamodb and S3 updated with the output data, like below:

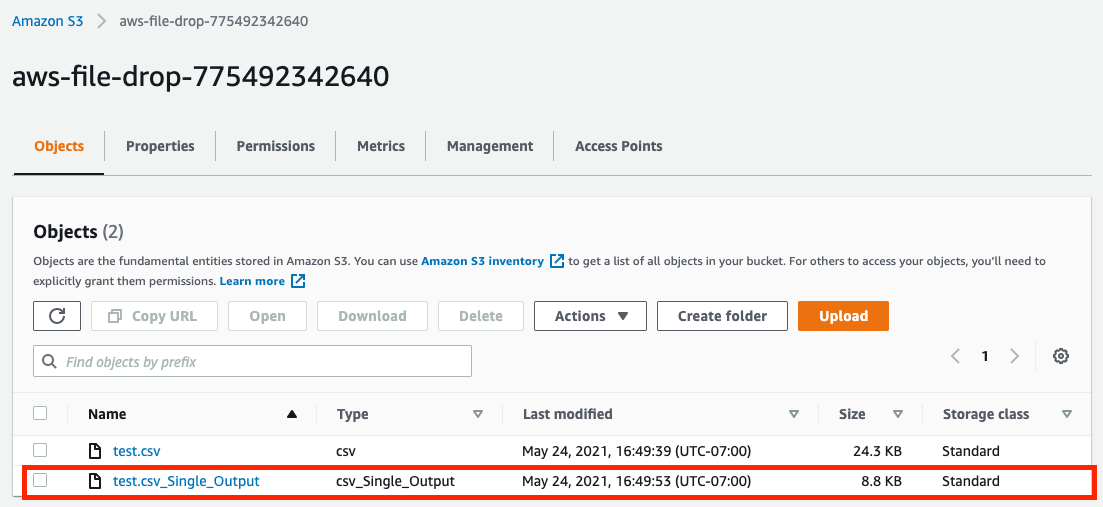

S3

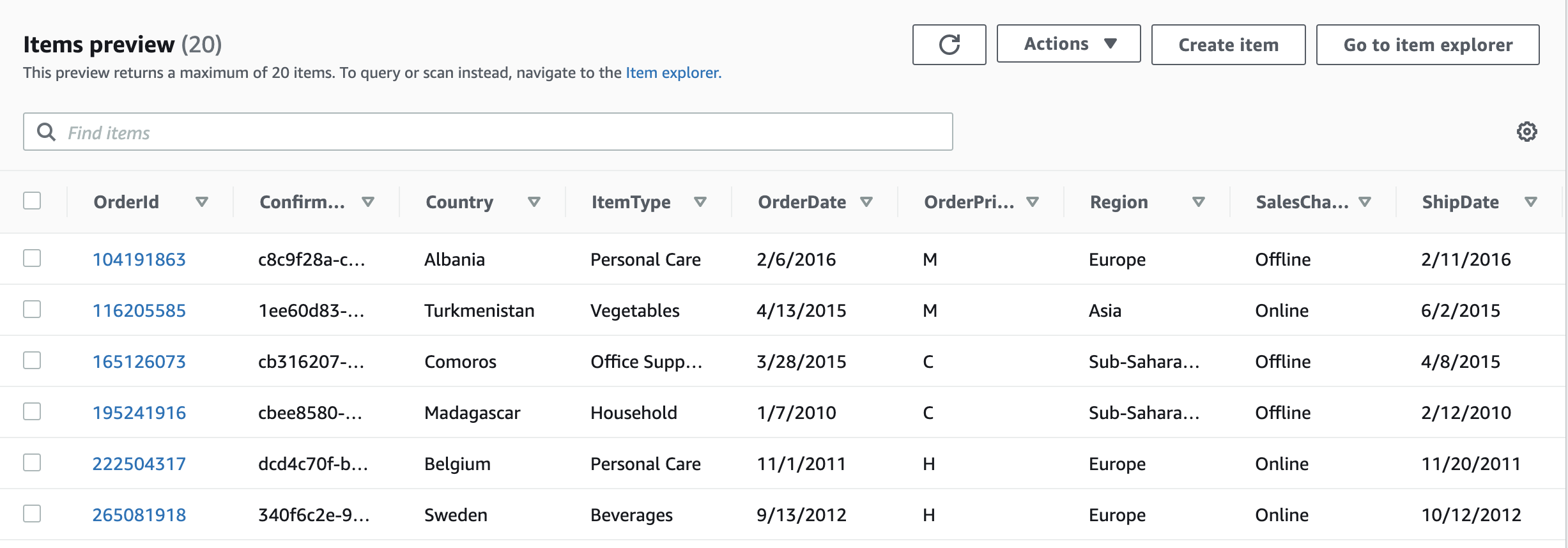

Dynamodb
-
Run the following command to cleanup all the resources created part of this article
./7-cleanup.sh cd ../..
Conclusion
This workload demostrates the power of ECS-anywhere, where the customer has the flexibility to pick between AWS cloud and their own data-center.
